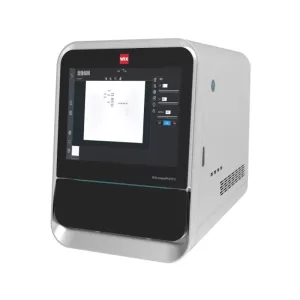

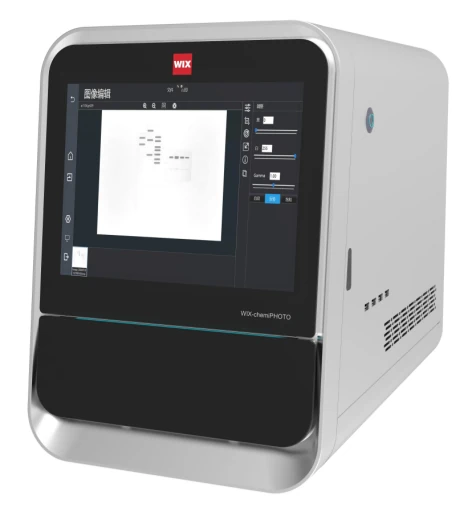

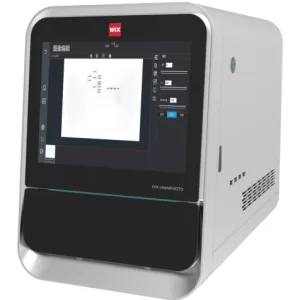

WIX-chemiPHOTO Chemi Imaging System

Categories: Imaging Systems

Description

Features

Ultra-low cooling temperature for extremely low image noise.
Well-known cutting-edge lens with large aperture, auto focus and aperture adjustment.
Built-in computer, automatic door, open and close the door without touching it with gestures to avoid cross contamination.
12.1 inch capacitive touch LCD screen.
Double layer light avoidance structure for effectively elimination of background stray light.

Specifications

Model	WIX-chemiPHOTO Chemi imaging system
Sensor model	SONY IMX492
Sensor size	4/3 inch
Pixel size	4.63µm x 4.63µm
Effective resolution	4164×2796
Maximum image area	10x14cm
Image resolution	11.7 MP, 46.8 MP (Extended Pixel Mode)
Exposure time	60μs-3600sec
Shutter type	Electronic Rolling Shutter
Lens aperture	F0.95
Excitation source	Double LED white light
Screen size	12.1 inch capacitive touch LCD screen
Quantum efficiency	90% (peak)
Full Well Capacity (1×1, 2×2, 3×3)	65ke-
A/D	14bit
Readout Noise	1.6-1.2e- @High gain mode 6.9-5.2e- @Low gain mode
Dark Current	0.002e- /pixel/sec@-20℃ 0.005e- /pixel/sec@-20℃
Cooling System	Dual Stage TEC cooler, about -35℃ below ambient
Optic Window Type	AR+AR High Quality Multi-Layer Anti-Reflection
Dimensions (mm)	320×500×430 (L×W×H)
